Central venous catheter (CVC) care for an infant, child, or young person
This guideline is intended to support and direct clinical staff in the safe and effective management of central venous catheters (CVC) in children. This includes minimising potential risks and early detection and management of complications.
- Overview
- Principles
- Definitions
- CVC Types
- Prevention of Central Line Associated Bloodstream Infecti...
- CVC safety
- Nursing Management
- CVC exit site dressing
- Alcohol impregnated caps
- CVC administration set change
- CVC administration set change
- CVC needleless connector
- CVC heparin lock instillation
- Blood sampling from a CVC
- Accessing an implanted venous access device
- De-accessing an implanted venous access device
- Potential complications
- Management of occlusion
- Antibiotic lock administration
- Ethanol lock administration
- Percutaneous (non-tunnelled) CVC removal
- Peripherally Inserted Central Catheter (PICC) and Tunnell...
- Discharge of a child with an intermediate or long term CV...
- References
- Related Information
- Document Control
Overview
The guideline is not intended to replace clinical judgement, rather the intent is to provide a consistent, evidence based approach to insertion, maintenance and removal of CVC, while highlighting the role of ‘care bundles’ in catheter management.
Principles
The careful preparation of children and their whānau/caregivers using age appropriate therapeutic play techniques and utilising play specialists, is recommended with all CVC management
Where a child has a CVC in situ, this is to be used for intravenous therapy in preference to inserting a peripheral cannula
It is the responsibility of all clinical staff caring for a child with a CVC to familiarise themselves with this guideline and other associated documents
CVC maintenance and removal of PICC and Percutaneous CVCs is undertaken by registered nurses who have been assessed as competent to do so by designated staff members
The procedures below should only be undertaken by staff members who have received additional training and demonstrated the required skill: • unblocking CVC • repairing CVC | |
Outside of PICU, each child must have a CVC Safety Kit containing 1 pack of gauze swabs, replacement dressing and 1-2 clamps, available in close proximity at all times. Ensure this pack is sent home with the child. | |
To reduce the risk of a potentially life threatening septic shower, when initially accessing all CVC which do not have a continuous infusion running, aspirate 2-5mL of blood and discard |
It is recognised that the recommended practices within this document may at times differ within specialty areas and under emergency situations
Definitions
Term | Description |
---|---|
Alcohol-impregnated cap | A cap for a needleless connector containing a sponge impregnated with 70% isopropyl alcohol (e.g. Dual Cap). When the cap is screwed on the end of a needleless connector the alcohol disinfects bacteria on the surface of the hub and thread for up to seven days. |
Aseptic non touch technique (ANTT) | ANTT is a technique that maintains asepsis and is non-touch in nature. Staff must perform effective hand hygiene, use a non-touch technique and wear appropriate gloves. |
Antibiotic lock | Instillation of a high concentration of an antibiotic for a pre-determined dwell time for treatment of a central line infection |
Central Venous Catheter (CVC) | For the purpose of this document, the term ‘central venous catheter’ refers to: • Percutaneously inserted non-tunnelled central venous catheter • Peripherally inserted central venous catheter (PICC) • Tunnelled uncuffed central venous catheter • Tunnelled cuffed central venous catheter (e.g. Hickman) • Implantable vascular device (e.g. PortaCath) • Percutaneous and tunnelled apheresis/haemodialysis type catheter (e.g. VasCath) |
‘Child’ | For the purposes of this document the term ‘child’ refers to infants, children and young people |
CLAB/CLABSI | Central line associated bacteraemia / Central line associated blood stream infection |
Ethanol lock | Instillation of ethanol for prevention of CLAB in children with recurrent central line infections |
Extravasation | Inadvertent administration of a vesicant solution/medication into the extravascular space |
Heparin lock | The instillation of heparin into the CVC lumen whenever a CVC is not in continuous use |
Infiltration | Inadvertent administration of a non-vesicant solution /medication into the extra-vascular space |
Medical Adhesive Related Skin Injuries (MARSI) | Skin damage that occurs when medical adhesive dressings are removed. Includes skin stripping and contact dermatitis |
Recommended cleaning solution | Use chlorhexidine gluconate 2% / ethanol 70% for device cleaning and skin disinfection. This is available as either a solution, wipes or swab sticks. Povidone iodine 10%, alcoholic tinctures of iodine, ethanol 70% alone or chlorhexidine 2% alone are acceptable if there is a contraindication to one or other component. For neonates less than 36 weeks refer to the NICU guideline. |
Recommended dressing | Tegaderm IV advanced 1685 - a transparent, high moisture transmission rate bordered dressing. The use of an alternative transparent high moisture transmission rate dressing may be considered for patients with allergy to above or sensitive skin (e.g. Polyskin). Chlorhexidine dressings (Tegaderm CHG) are used in the paediatric intensive care unit and may be considered for other individual patients identified as high risk of CLABSI in collaboration with the paediatric infectious disease team. The use of a more absorbent transparent dressing (e.g. Opsite Postop Visible) may be considered if there is serous/blood ooze from site of newly inserted catheters - exit site must be reviewed daily if this dressing is placed, and replaced with a transparent dressing as soon as possible. |
Recommended flush volume | The volume of the flush solution (sodium chloride 0.9%) should be equal to twice the volume of the catheter and add–on devices with a maximum volume of 10 mL. |
Scrub the hub | Scrub the needleless connector with chlorhexidine gluconate 2% /ethanol 70% for 15 seconds and allow to dry before every access. 70% ethanol can be used if the patient has an allergy to chlorhexidine. |
Septic shower | A septic shower is the sudden systemic influx of pathogens that have colonized in a central venous catheter, causing septic shock in the patient. This is a life threatening condition and requires urgent medical attention |
Syringe | Use syringes with a diameter at least that of a standard 10 mL syringe |
Trendelenburg position | Patient lies flat on their back with the feet higher than the head by 15-30 degrees. Used when removing non-tunnelled, non-cuffed CVCs |
Turbulent flow flushing technique | Using a ‘push-pause-push’ technique while flushing a CVC with sodium chloride 0.9% e.g. • Following administration of a medication • Prior to connection of an administration set • Following the withdrawal of a blood sample • Prior to heparin locking This technique will create a turbulent flow within the CVC lumen assisting in the prevention of fibrin deposits and drug precipitation. |
Vesicant | An agent capable of causing blistering, tissue sloughing, or necrosis when it escapes from the intended vascular pathway into surrounding tissue |
CVC Types
Haemodialysis / apheresis catheters
Some children may require a specialised large bore central venous catheter, commonly referred to as a vascath although a variety of brands are used.
For patients within the paediatric renal service this catheter is only accessed for haemodialysis/apheresis and managed by haemodialysis/blood bank staff members unless agreed to by the on call paediatric nephrologist.
Children who have a short term, uncuffed large bore catheter are not able to be discharged with the catheter in situ but may move around within the hospital. The exception is where the catheter is positioned in a femoral vein as the patient requires bed rest or wheelchair on the ward only.
Prevention of Central Line Associated Bloodstream Infection (CLASBI)
Strict adherence to the components of the CVC maintenance bundle every time the CVC is accessed is vital in reducing CLABSI
Hand hygiene before preparing medications and accessing CVC
Use ANTT for all procedures
Scrub the hub before every access and allow to dry
Administration sets and needleless connectors are changed every 96 hours, or weekly if the lumen is not in use
Dry and occlusive transparent, high moisture vapour transmission rate dressing which is changed weekly or if integrity compromised
Exit site check each shift (hourly for percutaneous and PICC/tunnelled and uncuffed CVC). Document and notify Vascular Access CNS or medical team if any signs of inflammation.
Daily (or as service agreed for long term lines) review of line necessity. Lines that are no longer necessary should be removed on discussion with medical staff
CVC safety
All inpatients with a CVC in situ require 4 hourly observations or as PEWS score dictates. If the temperature is > 38˚C and/or the patient exhibits clinical signs of sepsis (chills, rigors, hypotension, or tachycardia) blood cultures should be taken off CVC. For patients in paediatric intensive care unit (PICU), additional blood cultures should be obtained from separate sites. Refer to Starship Child Health Blood Culture Guideline
Do not remove the CVC on the basis of fever alone, clinical judgment and further evaluation of the patient is necessary. Consult with the paediatric infectious disease team as appropriate
Safety pack should be present at bedside
Access lines using a syringe with a standard 10mL syringe to avoid undue pressure
Avoid BP cuffs or tourniquet on arm with PICC in situ
Minimise the number of times a lumen with intravenous nutrition (IVN) is manipulated. Where possible, use a new dedicated single lumen CVC or dedicate a previously unused lumen on a multi-lumen CVC to IVN
For the instances where it is desirable to administer an antibiotic via the IVN lumen (or if limited IV access), add a short Y extension to the IVN administration set prior to connecting to the patient. This will enable the administration of additional medications without disconnecting the IVN administration set. |
Care bundle documentation
Use the central line insertion and care bundle checklist and continuation checklist (TRIAL-SSH-CR4030 & TRIAL-SSH-CR4032) to record:
adherence to the CVC care bundle components
record on-going CVC management, including complications and removal details
on-going audit and feedback on adherence to infection prevention practices.
Nursing Management
Preoperative nursing management
Ensure:
The child has fasted as per Starship guideline and goes to the operating room in clean clothes or pyjamas
That the pre-anaesthesia assessment has been completed by the child's guardian and that the child’s weight and base line recordings have been recorded (CR8815)
Informed consent (CR 0111) for the procedure has been obtained by medical staff members and is available in the patients notes
A full blood count has been taken and documented (CR8815), within the last 24 hours where appropriate and a “Group and Hold” is completed in the instance where blood products may be required
Prepare one parent or caregiver to enter the operating room during anaesthetic induction where appropriate.
Postoperative nursing management
Ensure:
The CVC insertion record (TRIAL-SSH-CR4030) or CVC procedural record is completed and added to the patient’s clinical record
Where a PICC or uncuffed tunnelled CVC has been inserted, ensure catheter length is documented on the insertion form
Assess and record vital signs on return to the ward as per postoperative recovery guideline and then as the child’s condition dictates
Observe insertion and exit sites and dressings for bleeding, on return to the ward and at least 4 hourly. Document assessment findings each shift. If excess bleeding at exit site notify Vascular Access CNS or medical team
Prior to using the CVC, ensure correct placement of CVC has been confirmed by X-ray and documented as such by a medical staff member
If continuous fluids are not in progress ensure that the CVC has a heparin lock (refer to section on Nursing Managment - CVC heparin lock instillation)
Note that implantable venous access devices remain accessed as required.
Continue maintenance bundle record (TRIAL-SSH-CR4032) for all vascular access devices and transcribe insertion and catheter details.
Use of infusion pumps with a CVC
To minimise the risk of potential complications from CVC therapy within Starship Child Health, all children receiving continuous intravenous fluids via a CVC must have their infusion controlled by an infusion pump. The programmed volume to be infused should be set and is not to exceed 2 hours |
CVC exit site dressing
Usually a transparent, high moisture vapour transmission rate dressing is used. These dressings are routinely changed weekly or more frequently if the dressing is compromised or blood is present at exit site.
If there is excessive ooze on the dressing within the first 24 hours of catheter placement contact the Vascular Access CNS or for after hours the appropriate staff as below to assess the dressing and further management:
For tunnelled cuffed CVCs contact the surgical registrar
For PICCs and tunnelled uncuffed CVCs contact the anaesthetic registrar
If a tunnelled cuffed catheter has a non-transparent dressing in situ, contact the surgical registrar for guidance about management.
The neck wound site dressing can be removed once site is healed.
If the child is discharged less than 24 hours post insertion with a non-transparent dressing, arrange for the community nursing service to change to a transparent, high moisture vapour transmission rate dressing the following day.
Some PICC and tunnelled uncuffed CVCs may be secured using a Securacath or at times Statlock. Click here for more information on how to apply and remove dressings on catheters with SecurAcath.
Note:
On exception, with well healed, tunnelled cuffed CVCs it may not be necessary to apply a dressing. This should be decided by the primary team, discussed with Vascular Access CNS and clearly documented on an individual basis
In exceptional circumstances where the recommended dressing is not used, the frequency of dressing changes are as per manufacturer’s instruction
To prevent medical adhesive related injuries (MARSI), ensure the cleaning solution is completely dry before applying the dressing.
To protect skin under dressing, barrier film such as Cavilon™ wipes should be used after cleaning the exit site and before applying the dressing in all compliant patients.
CVC exit site dressing procedure
Collect and prepare equipment
Gloves (non-sterile)
Chlorhexidine gluconate 2% in ethanol 70% (solution, wipe or swab-stick)
Aseptic field (reusable tray if using wipe/swabstick, dressing pack if using solution)
Recommended dressing - Tegaderm IV advanced or Polyskin
Remove wipes - if required
Procedure
Follow ANTT and hand hygiene moments throughout the procedure
Remove previous dressing (with remove wipes if required) and discard
Inspect exit site for signs of infection, then perform hand hygiene again and don non-sterile gloves
Pick up the distal end of the CVC and clean CVC from the exit site to the CVC hub and allow to dry
Clean site starting from the exit site extending to the area which should be covered by the dressing and allow to dry
Apply barrier film, i.e. Cavilon™ wipes and allow to dry
Apply recommended dressing, ensuring it is sealed around the CVC site. Tunnelled cuffed CVCs i.e. Hickman and Broviac catheters must ALWAYS be looped under the dressing for extra security
Do not apply gauze around the catheter or exit site as this will inhibit vision of the site and alter the moisture transmission rate of the recommended dressing
Dispose of all waste as per individual area practices
Document the date of dressing change, physical condition of the site and any nursing intervention in the clinical record (TRIAL-SSH-CR4030 & TRIAL-SSH-CR4032)
Report any signs of infection or changes in skin integrity to Vascular Access CNS and member of the primary medical team
See CVAD Assessment and Dressing Management Guide - advice on standard care and management of skin changes
Alcohol impregnated caps
Alcohol impregnated caps (e.g. Dual Caps) should be attached to all regularly accessed needleless connectors on medium or long-term CVCs. They are used in addition to scrubbing the hub, not as a replacement for this. Each alcohol impregnated cap is single use only.
Dual Caps are changed:
With every access of a needleless connector
Minimum of every seven days
CVC administration set change
Continuous CVC administration sets are changed:
On completion of blood product infusion
Following any form of disconnection from CVC
Every 24 hours if IVN is in progress
As indicated for medication infusions
Every 96 hours in all other instances
Once an administration set has been disconnected from a CVC, it should not be reconnected later. If intermittent medications are being given via a CVC, a new administration set should be used each time.
CVC administration set change
Collect and prepare equipment
Gloves (non-sterile)
Chlorhexidine gluconate 2% in ethanol 70%
Aseptic field (cleaned reusable tray)
Sodium chloride 0.9% or pre filled sodium chloride 0.9% syringe
10 mL syringes and needles as required
New administration set/intravenous fluid with Dual Caps applied to needleless connectors as required
Procedure
Follow hand hygiene moments and ANTT throughout the procedure
Prime new administration set and clamp set
Prepare patient by placing supine and ensure clamps on catheter are closed and any infusion in progress is stopped
Where there is a current infusion in progress
Disconnect the current administration set
Scrub the hub and allow to dry
Connect 10 mL syringe containing sodium chloride 0.9% and assess patency of catheter
Disconnect syringe, scrub the hub and connect primed administration set
Where the catheter has a heparin lock in situ
Remove Dual Cap from needleless connector
Scrub the hub and allow to dry
Connect an empty syringe, remove 2-5 mL of blood from the catheter and discard (removes heparin and reduces risk of ‘septic shower’)
Scrub the hub before connecting a 10 mL syringe with 0.9% sodium chloride
Flush CVC using a ‘turbulent flow’ technique
Remove syringe, scrub the hub before connecting new administration set to CVC
NB If you are unable to remove the heparin lock from the CVC, stop the procedure, and inform Vascular Access CNS or member of the primary medical team that the heparin lock (200 units/2 mL or 5000 unit/5 mL) is unable to be withdrawn.
Place new administration set in appropriate volumetric pump or syringe driver
Verify pump setting is correct as per prescription, independently double check with a colleague if required
Open clamps and commence infusion at prescribed rate
Ensure that all lines are clearly labelled
Dispose of all waste as per individual area practices
Document the date of administration set change in the patient’s clinical record and on the administration set
CVC needleless connector
CVC needleless connectors are changed:
Every 96 hours when being regularly accessed in hospital
Weekly if not being regularly accessed. This should coincide with catheter flush, heparin lock instillation and exit site dressing change.
CVC needleless connector change
Collect and prepare equipment
Gloves (non-sterile)
Chlorhexidine gluconate 2% in ethanol 70%
Aseptic field (cleaned reusable tray)
Needleless connector(s)
Sodium chloride 0.9% or pre filled sodium chloride 0.9% syringe
10 mL syringes and needles as required
Alcohol impregnated cap as required
Procedure
Follow hand hygiene moments and ANTT throughout the procedure
Prime new administration set if required
Prime new needleless connector with 0.9% sodium chloride
Prepare patient by placing supine and ensure clamps on catheter are closed and any infusion in progress is stopped
Where there is an infusion in progress
Hand hygiene
Disconnect the current administration set
Scrub the hub and allow to dry
Remove the needleless connector, scrub the hub of the CVC and replace with a new primed needleless connector
Connect 10 mL syringe containing sodium chloride 0.9% and assess patency of catheter by first bleeding and then flushing the line
Disconnect syringe, scrub the hub before connecting new primed administration set
Where the catheter has a heparin lock in situ
Remove alcohol-impregnated cap from needleless connector
Scrub the hub and allow to dry
Remove the needleless connector, scrub the hub of the CVC then replace with a new primed needleless connector
Connect an empty syringe, remove 2-5 mL of blood from the catheter and discard (removes heparin and reduces risk of ‘septic shower’)
Scrub the hub and connect a 10 mL syringe with sodium chloride 0.9%
Flush CVC using a ‘turbulent flow’ technique
Remove syringe, scrub the hub and allow to dry
Attach syringe and instil heparin lock
Where 200 units/2 mL or 5000 units/5 mL strength of heparin is instilled, clearly label the catheter indicating this
Apply Dual Cap to end of needleless connector
NB If you are unable to remove the heparin lock from the CVC, stop the procedure, and inform a member of the primary medical team that the heparin lock (200 units/2 mL or 5000 units/5 mL) is unable to be withdrawn.
Dispose of all waste at point of care
Document the date of needleless connector change in the patient’s clinical record
CVC heparin lock instillation
When a continuous infusion is not in progress it is necessary to instil a heparin lock to maintain CVC patency. The strength of the heparin will depend on various factors such as, catheter type, the time between heparin instillation, and patient characteristics.
Catheter used within 8 hours (excludes: Haemodialysis/Apheresis Catheters): Use Heparinised Saline 50 units/5 mL
Catheter used after 8 hours (excludes: Haemodialysis/Apheresis Catheters): Use Heparin 200 units / 2 mL.
Contraindications for heparin use - Anaphylaxis to heparin.
Heparin strength:
Type of line | Heparin volume | Heparin strength |
---|---|---|
Short-term CVC | 0.5 mL (each lumen) | 200 units / 2 mL every 7 days |
Implantable venous access device | 2 mL | 200 units / 2 mL monthly |
Tunnelled | <1 yr = 0.5 mL (each lumen) | 200 units / 2 mL every 7 days |
PICC | <1 yr = 0.5 mL (each lumen) >1 yr = 1 mL (each lumen) | 200 units / 2 mL every 7 days |
Haemodialysis/ Apheresis Catheters | Use intraluminal volumes specified on the catheters. Use exact volumes taking into consideration any ‘add-ons’ such as needleless connector | 5000 units / 5 mL between therapy up to weekly |
Exceptions:
Infants less than 5 kg in PICU (Paediatric Intensive Care Unit) and PCCS (Paediatric Congenital and Cardiac Services) have a continuous low dose heparin infusion administered as prescribed via their CVC until removal of the CVC
Children under the PCCS require a low rate continuous intravenous infusion via one or both of their CVC lumens, rather than heparin locking, (unless otherwise documented by a medical officer)
In the Starship Blood & Cancer Centre, lumens which require intermittent medication infusions have a continuous TKVO (to keep vein open) infusion
The rate of either of these infusions should be agreed upon in line with specialty service and prescribed accordingly
Weekly or monthly, flushing and heparin lock instillation should be timed to coincide with needleless connector change and exit site dressing changes.
Equipment required for CVC heparin lock instillation
Gloves (non-sterile)
Chlorhexidine gluconate 2% in ethanol 70%
Aseptic field (cleaned reusable tray)
Sodium chloride 0.9%
10 mL syringes and needles as required
Heparin as prescribed
Needleless connector
Alcohol impregnated cap as required
Procedure
Follow hand hygiene moments, ANTT and scrub the hub throughout the procedure
Prepare equipment, using an independent double check procedure
Prepare patient by placing supine and ensure clamps on catheter are closed and any infusion in progress is stopped
Where there is a current infusion in progress
Disconnect the current administration set
Scrub the hub and allow to dry. If a new needleless connector is required, prime the device and attach to the CVC
Connect 10 mL syringe containing sodium chloride 0.9% and flush CVC using a turbulent flow technique
Disconnect sodium chloride syringe, connect and instil heparin solution
Document heparin lock on Central Line Insertion and Care Bundle
Place an alcohol impregnated cap on needleless connector
Where the catheter has a heparin lock in situ
Remove alcohol impregnated cap from needleless connector
Scrub the hub and allow to dry. If a new needleless connector is required, prime the device and attach to the CVC
Connect an empty syringe, remove 2–5 mL of blood from the catheter and discard (removes heparin and reduces risk of ‘septic shower’)
Scrub the hub and allow to dry before connecting a 10 mL syringe with sodium chloride 0.9%.
Flush CVC using a ‘turbulent flow’ technique
Instil new heparin lock
Document heparin lock on Central Line Insertion and Care Bundle
Place an alcohol impregnated cap on needleless connector
NB If you are unable to remove the heparin lock from the CVC, stop the procedure, and inform Vascular Access CNS or a member of the primary medical team that the heparin lock (200 units/2 mL or 5000 units/5 mL) is unable to be withdrawn.
Dispose of all waste at point of care
Document the procedure in the patient’s clinical record (TRIAL-SSH-CR4030 & TRIAL-SSH-CR4032)
Sign medication administration record for the heparin administered
Blood sampling from a CVC
While blood samples can be obtained from a CVC, it is advisable to assess the appropriateness of sampling from the CVC as per individual area practices. Some tests are not advised to be taken from CVC lines as follows:
Serum levels should not be obtained from the same lumen as medication administration
No samples should be routinely taken from renal dialysis catheters by members of the ward nursing staff
A finger prick should be considered rather than taking blood off a central line when it is not in use. Discuss within specialty.
Equipment
Gloves
Chlorhexidine gluconate 2% in ethanol 70%
Aseptic field (cleaned reusable tray)
Sodium chloride 0.9%
10 mL syringes and needles as required
Alcohol impregnated caps as required
Procedure
Prepare equipment and patient, discontinuing any infusions in progress via all lumens
Follow hand hygiene moments, ANTT and scrub the hub throughout the procedure
Where possible, blood sampling should be taken without breaking the line e.g. via a designated needleless connector
When obtaining a blood culture, use sterile gloves and change the needleless connector immediately prior to aspirating the blood sample. Refer to Starship Child Health Blood Culture Guideline
Prepare equipment and patient, discontinuing any infusions in progress via all lumens
Scrub the catheter hub before attaching new needleless connector and with chlorhexidine gluconate 2% /ethanol 70% for 15 seconds and allow to dry
Scrub new needleless connector with chlorhexidine gluconate 2% /ethanol 70% for 15 seconds and allow to dry. Aspirate initial 2-5 mL and discard (to improve accuracy of results and reduce risk of septic shower). If blood cultures are to be taken and the patient weighs greater than 30kg, the initial blood draw should not be discarded but be included in the blood used to fill the culture bottles
Obtain blood specimens as requested (blood culture bottles should be filled first)
Flush CVC with sodium chloride 0.9% using turbulent flow technique prior to either instilling a heparin lock or continuing with infusion
Ensure no blood remains in the needleless connector
Fill specimen containers and label containers at the bedside
Verify patient ID label on specimen container matches the patient ID on the laboratory form and the patient's wristband prior to sending to the laboratory
Dispose of all waste at point of care
Document the procedure in the patient’s clinical record (TRIAL-SSH-CR4030 & TRIAL-SSH-CR4032)
Accessing an implanted venous access device
When an implanted port is accessed for treatment, port needles are changed every 7 days. When an implanted port is not being used regularly, it is accessed monthly to flush the catheter and replace the heparin lock.
Within Starship, power ports are inserted. These ports are able to withstand 300 pounds per square inch (psi) and can therefore be used for a power injection of contrast media. For a contrast injection to be administered via the port a POWER LOC needle needs to be inserted. The nurse must also attach the sticker provided in the pack onto the extension set which signifies that contrast can be administered.
At all other times a gripper needle is inserted. Both gripper and power loc needles are non-coring and have an extension set attachment.
Collect and prepare equipment
Gloves (non-sterile)
Chlorhexidine gluconate 2% in ethanol 70% wipe
Aseptic field (cleaned reusable tray)
Needleless connector(s) and alcohol impregnated caps
Sodium chloride 0.9% and 10 mL syringes and needles as required or pre filled sodium chloride 0.9% syringe
Gauze swab (for monthly flush and heparin lock)
Port needle with luer lock extension (e.g. Gripper needle or POWER LOC needle)
Recommended dressing
Heparin as prescribed. See table above
Procedure
Follow ANTT throughout the procedure
Draw up sodium chloride 0.9% using a 10 mL syringe, (or prefilled syringe)
Draw up heparin using an independent double check procedure
Attach needleless connector to the non-coring needle and extension set; prime with 0.9% sodium chloride
Prepare patient by removing any clothing that obscures port site and raise the child’s arm above head if necessary or position the child as appropriate
Remove topical anaesthetic if applicable
Locate the port, identifying the three palpation points which are arranged in a triangle
Clean the skin with recommended cleaning solution starting in the centre over the implanted CVC site, using a friction motion, clean in concentric circles, extend out to include the area that will be covered by the dressing
Using the non-dominant hand, stabilise the port with two or three fingers to stop the port moving under the skin during the procedure
With the dominant hand, insert the needle at a right angle into the middle of the port. Push the needle slowly but firmly through the child’s skin into the septum of the port
Connect an empty 10 mL syringe to the luer lock at the end of the port extension tubing
Draw back 5 mL of blood and discard. If blood is unable to be withdrawn:
reposition child
reposition needle
If blood is still unable to be withdrawn, stop the procedure and discuss with Vascular Access CNS or member of the primary medical team regarding need for radiological examination prior to further action
Once blood is withdrawn, or position is confirmed by radiological examination, or by a member of the primary medical team, remove syringe from extension set and discard. Flush with 10 mL of sodium chloride 0.9% using turbulent flow technique. Lock with heparin as prescribed or commence continuous fluids
Place a Dual Cap on needleless connector
Remove wings from gripper needle and discard. (Note: if using a Power port needle, wings are not removable).
Apply dressing securely and firmly over the port needle, ensuring all edges of dressing are sealed securely to prevent dressing lifting. Younger children may need a securing device (eg. Flexi track) to prevent accidental needle removal
Record the procedure and confirmation of correct needle placement in the patient's clinical record
De-accessing an implanted venous access device
To safely remove a needle from an implanted port when the needle is being changed
or cessation of continuous therapy
Collect and prepare equipment
Gloves (non-sterile)
Chlorhexidine gluconate 2% in ethanol 70% wipe
Aseptic field (cleaned reusable tray)
Sodium chloride 0.9%
Heparin as prescribed
Small adhesive dressing (e.g. band aid)
Procedure
Follow hand hygiene, ANTT and scrub the hub techniques throughout the procedure
Draw up sodium chloride 0.9% in a 10 mL syringe, or use prefilled syringe
Draw up heparin in a 10 mL syringe as prescribed, using an independent double check procedure
Prepare the patient and remove any clothing that obscures the port site
Loosen the edges of the dressing, leaving the dressing around the port needle
Remove any alcohol impregnated caps
Connect syringe and flush with 10 mL of sodium chloride 0.9% using turbulent flow technique
Administer heparin as prescribed
Remove the port needle and remaining dressing vertically with the non-dominant hand stabilising the port. Using gauze swab, apply pressure to exit site
Report any changes to a member of the primary medical team;
Consider covering the exit site with a small dressing
Document procedure in the patient’s clinical record
Dispose of all waste as per individual area practice
Potential complications
See Intravenous Catheters - Peripheral guideline for phlebitis and infiltration scores
Complication | Action |
---|---|
Air embolism An air embolism in a CVC is a medical emergency. Notify the primary medical team if the child becomes: • Tachycardic • Dyspnoeic or • Cardiovascular collapse Initiate resuscitation and call a paediatric code blue as required | To reduce the risk of air embolism: • Ensure all CVC administration sets have needleless connectors • Ensure all CVC administration set connections are secure at the commencement of each shift, and checked a minimum of 4 hourly and following administration set change • Ensure administration sets are primed prior to connection to CVC • Ensure a CVC safety kit containing 1 pack of gauze swabs and 2 clamps, is available in close proximity at all times • Ensure the CVC is protected from breakage or rupture, which may result in air entering the line • Instruct the child and family to notify nursing staff members immediately if air is seen in the administration set If air is present in the administration set: • Clamp the catheter and stop the infusion • Position the child supine with head down or on their left side with head down and attempt to aspirate the air from the CVC immediately • If able, aspirate the air from the administration set using a syringe via the needleless access port (remove the set from the pump and use the manual control to allow fluid and air to run into syringe) • Recommence the infusion, monitoring the child closely • If unable to aspirate the air, change the administration set • If inotropes are running via the lumen where air has been seen, DO NOT stop the infusion. Refer to the inotrope guideline for management of air in line with inotropes |
Potential for strangulation from IV lines | There is a risk to young children, 6 months to 5 years of age, getting tangled in their IV lines due to turning in bed while asleep. The risk in hospital is mitigated by hourly IV site and line checks. • Ensure that sleeping children are visible (e.g. curtains pulled back). • Limit the length of IV tubing • Ensure lines are well secured • Track the line down a singlet or PJ top or leg (to exit at the furthest point from the neck) • Place the IV pole at the foot end of the bed |
Infection | CVCs breach the body’s skin defences and can be associated with increased rates of bacteraemia. The maintenance bundle (CR4032) has been shown to be effective in reducing central line associated bacteraemia. Dual caps should be used on all exposed needleless connectors for medium and long term CVCs. If a child with a CVC develops a fever or signs of infection, notify medical staff. |
Phlebitis | • For patients with a CVC in situ their CVC exit site should be assessed for sign of phlebitis using the phlebitis score from the Intravenous Catheters – Peripheral guideline • Percutaneous CVCs and PICCs should be assessed and documented hourly • Surgically placed CVCs should be assessed and documented at least once per shift • Following PICC insertion, upper arm mechanical phlebitis is common and is evidenced by redness, warmth, and tenderness. This is not an indication to remove the line. Any inflammation/phlebitis of a PICC line should be assessed by a member of the anaesthesia or infectious disease team prior to any decision to remove. • Phlebitis is managed with limb elevation and application of warm heat packs. • The medical team should always be advised and consulted. |
Occlusion | Occlusion is the most common complication. The majority of occlusions are due to thrombosis. Catheter occlusions can be complete or partial Catheter occlusion can lead to infiltration, extravasation, infection or venous thrombosis (complete blockage of vein with potential for embolus). To reduce the risk of occlusion: • Ensure a heparin lock is administered as prescribed when the CVC is not in continuous use. • Ensure all CVCs are flushed with sodium chloride 0.9% • Ensure a turbulent flow flushing technique is carried out • Ensure any symptoms of a potential thrombus are identified early and reported to a member of the primary medical team. Symptoms include: • Initiate early discussion with the primary medical team regarding the need for radiological investigation. Manage occlusions according to section on Fibrinolytic agent administration |
Accidental disconnection of administration set | To manage an accidental disconnection: • Clamp the CVC proximal to the area of disconnection obtained from safety kit kept at bedside • Assess the child’s condition and amount of blood loss • Notify the primary medical team • Aspirate CVC to ensure blood withdrawal • Send blood for culture as requested • Flush line with sodium chloride 0.9% when patency confirmed • Change administration set |
Infiltration | Be aware of potential for internal infiltration/extravasation to occur, particularly with left femoral percutaneous catheters or due to a misplaced/dislodged implanted port needle. Pain/discomfort may be a key sign as swelling may initially be difficult to detect. Be vigilant when administering potential vesicants e.g. cytotoxic therapy, parenteral nutrition. To reduce the risk of infiltration and extravasation: • Carry out and document an hourly site assessment, using the Infiltration score from the Intravenous Catheters – Peripheral guideline, • Ensure catheters are taped securely minimising movement. • DO NOT take blood pressure recordings on a patients arm with a PICC in situ • Consider the use of vests and mittens on infants and small children If infiltration/extravasation is suspected: • Stop infusion • Notify the primary medical team immediately |
If CVC falls out completely | • Apply pressure to the skin exit site and vein entry site until haemostasis is achieved and apply a sterile occlusive dressing to the skin exit site. • For percutaneous lines and non-tunnelled PICCs the skin exit site and vein entry site are the same. • For tunnelled catheters, the vein entry site will be different to the skin exit site. Refer to CVC types diagram • Obtain medical assistance immediately |
Rupture of CVC | To reduce the risk of catheter rupture: • Use syringes with a diameter of at least that of a standard 10 mL syringe when accessing a CVC so that no undue pressure is exerted on the CVC • Ensure that the CVC is protected from sharp objects, twisting, stretching and tension placed on the line If CVC rupture occurs: • Clamp the CVC proximal (closer to the patient) to the area of rupture • Lie patient on left side, head down • Notify the primary medical team immediately and Vascular Access CNS • Do not remove CVC without a senior medical staff members’ advice If able to be repaired, (tunnelled cuffed catheters only) obtain a CVC repair kit from the Starship operating rooms. Repair kits are designated for the particular catheter brand, size and lumen (e.g. Broviac 4 fr brown lumen). CVC repair should only be undertaken by designated trained clinical staff - Contact Vascular Access CNS or on-call paediatric Surgical Registrar for after hours. Document any CVC complications and interventions carried out in the patient’s clinical record (TRIAL-SSH-CR4030 & TRIAL-SSH-CR4032) |
Management of occlusion
Partial or complete occlusion of a CVC is due to kinking, malposition, medication precipitation or lipid occlusion, should be ruled out as a potential cause of occlusion:
Assess the CVC line and corresponding IV lines for kinks/ medication precipitation or lipid occlusion;
Assess ability to aspirate/flush line while turning the child’s head to the opposite side, elevate their arm, ask the child to cough or bear down in a valsalva manoeuvre, place the child’s head down;
Change the port needle if applicable
Occlusion of renal haemodialysis catheters should be managed by the renal haemodialysis team.
If a long term CVC is partially or completely occluded due to thrombosis or fibrin (other causes have been ruled out as above), patency may be restored with the instillation of a fibrinolytic agent. The fibrinolytic agent must be withdrawn and discarded at the end of the prescribed dwell time.
Note: use of fibrinolytic agent (eg Alteplase) should be considered early prior to complete occlusion and when unable to aspirate blood from catheters.
The primary team may consider radiological investigations such as an x-ray to confirm placement or linogram either prior to fibrinolytic agent instillation or if patency fails to be restored after instillation attempt. Note: If the line is able to be flushed without resistance and the primary team approves, the line can continue to be used even if unable to bleed back following catheter tip confirmation via x-ray.
Caution should be exercised in using a fibrinolytic agent with patients who:
have any condition for which bleeding constitutes a significant hazard
have had recent severe bleeding
have had recent major trauma
have active ulcerative GI disease
have had a recent stroke
are receiving warfarin therapy where INR > 1.3
have had heparin administered on same day or APTT > 45
have a platelet count < 80
Caution should be exercised in the presence of known or suspected infection in the catheter.
Unblocking CVCs with fibrinolytic agent should be done during pharmacy opening hours. Obtain a pre-prepared alteplase 1 mg/mL syringe using usual pharmacy process. 3 mL of alteplase 1 mg/mL in 10 mL syringes are aseptically manufactured in advance and are frozen at -20 ᴼC. The cold chain must be maintained during transportation. Syringes are thawed by leaving in room temperature for 10 minutes and must be used straight away and never refrozen
If the CVC blocks ‘after hours’, it may be necessary to attain temporary peripheral venous access to maintain therapy until the following morning. If able to flush instill weak heparin until the following morning.
If unblocking the CVC after hours is deemed critical to maintaining the patient’s therapy, contact the Clinical Nurse Manager (CNM) whom will either contact the on call pharmacist or source from a ward who stocks vials or holds frozen syringes (Adult Dialysis).
Alteplase must only be administered in consultation with the patient’s primary consultant and must be prescribed on the patient’s medication chart |
Fibrinolytic agent administration
Collect and prepare equipment
Gloves (non-sterile)
Chlorhexidine gluconate 2% in ethanol 70%
Aseptic field (cleaned reusable tray)
Needleless connector(s)
Dual Cap(s)
Sodium chloride 0.9%
10 mL syringes and needles as required
Fibrinolytic agent as prescribed (alteplase 1 mg/mL)- sourced as per above
Procedure for instillation of Alteplase
Follow aseptic non touch technique throughout the procedure;
Draw up sodium chloride 0.9% in a 10 mL syringe or use prefilled sodium chloride 0.9% syringe
Clamp the CVC lumen and disconnect the IV administration set if required
Attach the 10 mL syringe containing sodium chloride 0.9% and attempt to gently aspirate blood/fluid from the CVC or to flush CVC; If CVC remains occluded attach the 10 mL syringe containing the fibrinolytic agent;
Using a gentle alternation of irrigation/aspiration over a few minutes, attempt to instil the fibrinolytic agent. The fibrinolysis agent should be instilled slowly to allow it to cover the walls of the catheter;
Volume to be instilled is the volume of the lumen . DO NOT FORCE the fibrinolytic agent into the catheter lumen;
If the fibrinolytic agent is unable to be instilled, stop the procedure, discuss with Vascular Access CNS and advise the primary medical team for further guidance (radiological imaging may be required I.e. x-ray for placement or linogram);
Once the fibrinolytic agent is instilled, clamp the CVC and leave in situ for a minimum of 2 hours. Note: longer dwell time may be required (maximum 24 hours);
Place Dual Cap on needleless connector. Ensure the catheter is clearly labelled as having alteplase instilled. In case of emergency, a shorter dwell time may be attempted but a dwell of at least 30 minutes is recommended;
Using a 10 mL syringe, attempt to aspirate fibrinolytic agent in 3-5 mL of blood. If aspiration is unsuccessful, advise the primary medical team for further guidance (radiological imaging may be required I.e. x-ray for placement or linogram);
If aspiration is unsuccessful it may be necessary to leave the fibrinolytic for a longer dwell time (up to 24 hours). DO NOT FLUSH the catheter as this will result in the administration of the fibrinolytic medication to the patient. If aspiration of alteplase remains unsuccessful after 24 hours consult primary consultant or Vascular Access CNS;
If aspiration is successful, withdraw and discard 3-5 mL. Flush CVC with sodium chloride 0.9% using turbulent flow technique and resume infusion or heparin lock CVC using positive pressure technique, as per CVC heparin locking guideline;
Record procedure in the patient’s clinical record (TRIAL-SSH-CR4030 & TRIAL-SSH-CR4032) and medication chart
Fibrinolytic agent instillation volume
Type of line | Max volume |
SVAD | 2 mL |
Tunnelled | > 1 year = 1 mL and < 1 year = 0.5 mL (each blocked lumen) |
PICC | > 1 year = 1 mL and < 1 year = 0.5 mL (each blocked lumen) |
Antibiotic lock administration
An antibiotic lock is the installation of a high concentration of an antibiotic, to which the causative organism is susceptible, into the catheter lumen.
An antibiotic lock is used to treat central line associated blood stream infections in long term CVC with no signs of exit site or tunnel infection for which catheter salvage rather than catheter removal is the goal.
The decision to initiate antibiotic lock therapy is a collaborative decision by the primary medical team, the paediatric infectious diseases service and the paediatric pharmacist. The paediatric infectious diseases team in collaboration with the paediatric pharmacist will determine the appropriate solution, dwell time and duration of therapy. The antibiotic lock should be used in conjunction with systemic antimicrobial therapy.
An antibiotic lock may be considered for
Recurrent infections
Multiple previous lines with limited vascular access
Polymicrobial infections
Unable to change catheter (e.g. patient with haemophilia)
Contraindications for antibiotic locks
Infants less than 6 months, including neonates
Non-patent lumens
Pocket, tunnel or exit site infection
Anaphylaxis to antibiotic
Abnormal renal function test for aminoglycoside locks
Dwell time and duration of antibiotic locks
ADHB, antibiotic locks can be dwelled for 1 hour every other day or left in the line between use for up to 24 hours
Dwell times should not exceed 48 hours between installations of lock solution because antibiotic concentration may reduce rapidly over time
Children undergoing haemodialysis, the lock solution with the addition of heparin can be renewed after every dialysis session (refer to associated ADHB documents section)
For multi-lumen catheters, ideally all lumens should be locked at the same time
If this is not possible the antibiotic lock should be instilled into alternating lumens every 24 hours
Antibiotic locks must be prescribed on the medication chart as gentamicin 5 mg/mL line lock or vancomycin 5 mg/mL line lock, which lumens to instil antibiotic into, volume of lumen, and dwell time
Collect and prepare equipment for antibiotic lock
Gloves (non-sterile)
Chlorhexidine gluconate 2% in ethanol 70%
Aseptic field (cleaned reusable tray)
Needleless connector(s)
Sodium chloride 0.9%
10 mL syringes and needles as required
Gentamicin 80 mg/2 mL ampoule (as required)
Vancomycin lock (as required)
Procedure for making gentamicin 5 mg/mL line lock |
|
Vancomycin 5 mg/mL line lock |
|
Procedure for instillation of antibiotic locks
Follow aseptic non touch technique throughout
Ensure the CVC is clamped
Attach a sodium chloride 0.9% prefilled syringe to the needleless connector
Unclamp the CVC and gently flush with sodium chloride 0.9% to ensure catheter patency
Change syringes and instil volume of antibiotic lock equivalent to the intraluminal volume of the catheter (see table below). The required volume is inserted into one or two lumens as prescribed
Clamp the CVC and leave solution within the lumen for the prescribed dwell time. Clearly label the lumen with medication instilled and time of instillation. Do not use lumen during the dwell time period;
After prescribed dwell time has elapsed the lock solution must be withdrawn. Remove and scrub the hub. Attach clean syringe and withdraw 3-5 mL and discard;
Flush with sodium chloride 0.9% using a turbulent flow technique. Instil heparin lock and place alcohol impregnated cap on needleless connector or connect IV administration set as required
Other antibiotic locks | Other antibiotic locks may be used as clinically indicated. The choice of appropriate lock solution will depend on reasons for use, isolate and susceptibility pattern, systemic antibiotic and underlying host factors. The paediatric infectious diseases team in collaboration with the paediatric pharmacist will determine the type of agent, dwell time and duration of therapy |
Type of line | Volume | |
SVAD | 2 mL | |
Tunnelled | > 1 year = 1mL and < 1 year = 0.5 mL (each lumen if prescribed) | |
PICC | >1 year = 1 mL and < 1 year = 0.5 mL (each lumen if prescribed) | |
Haemodialysis/Apheresis Catheters | Use intraluminal volumes specified on the catheters |
Ethanol lock administration
An ethanol lock is used to prevent central line associated blood stream infections in children with recurrent infections with limited vascular access that require long term CVC use and have no evidence of active infection. However, it may have a negative impact on line integrity. Only silicone tunnelled central venous catheters (e.g. hickman, broviac) or silicone Peripherally Inserted Central Catheters (PICC) are compatible with ethanol.
The decision to initiate ethanol lock therapy is a collaborative decision by the primary team, the paediatric infectious diseases service and the paediatric pharmacist. The paediatric infectious diseases team in collaboration with the paediatric pharmacist will determine the appropriate solution, dwell time and duration of therapy.
Children on long term IVN may have 70% ethanol locks prescribed by the paediatric gastroenterology service as per the Starship Intravenous Nutrition Clinical Guidelines (see associated ADHB documents section).
An ethanol lock may be considered for
Recurrent infections
Multiple previous lines with limited vascular access
Polymicrobial infections
Unable to change catheter (e.g. patient with haemophilia)
Contraindications for ethanol lock
Anaphylaxis to ethanol solution
Non silicone catheters e.g. short term percutaneous CVC
Subcutaneous vascular connector (port)
Abnormal liver function test
Heparin administration
Dwell time and duration of ethanol locks
Within ADHB, dwell times of a minimum of 2 and maximum of 6 hours are used. Ethanol is used weekly with a review at 3 months.
Ethanol locks must be prescribed on the medication chart as ethanol 70% line lock, which lumens to instil ethanol lock, volume of lumen, and dwell time.
Step | Action |
---|---|
Check compatibility of catheter | Ensure the catheter is silicone Note: If the catheter has been percutaneously inserted or designated as suitable for use with the power autoinjector – it is unlikely to be silicone |
Collect and prepare equipment |
|
Procedure for making ethanol 70% line lock |
|
Procedure for instillation of ethanol lock |
|
Type of line | Volume | |
Tunnelled | > 1 year = 1mL and < 1 year = 0.5 mL (each lumen) | |
PICC | >1 year = 1mL and < 1 year = 0.5 mL (each lumen) |
Percutaneous (non-tunnelled) CVC removal
Removal of a percutaneous (non-tunnelled) CVC should be undertaken by staff who are knowledgeable and skilled in this procedure.
All cuffed and surgically placed CVCs e.g. Hickman lines, Portacaths, must be removed in the operating room.
There is risk of air embolism during removal of internal jugular/subclavian non-tunnelled, non-cuffed CVC and large bore catheters.
In addition, some children are at increased risk of air embolism during catheter removal.
|
Ensure the below procedure is followed when removing these catheters:
Collect and prepare equipment
Gloves (non-sterile)
Chlorhexidine gluconate 2% in ethanol 70%
Aseptic field (cleaned reusable tray)
Recommended occlusive dressing
Stitch cutter
Paper tape measure (as required to measure PICC)
Check removal is not contraindicated due to patient’s coagulation status
Position the patient |
|
Trendelenberg

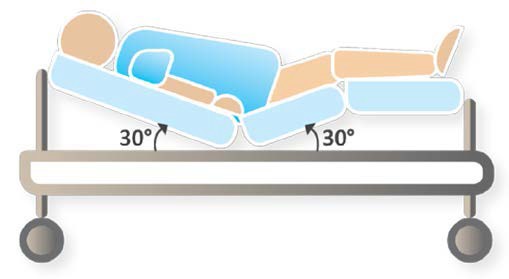

Low semi-Fowler

Breathing
If the child can cooperate, they should be instructed to breathe in, hold their breath and bear down (perform a Valsalva), and then the catheter should be removed. If they are not able to perform this manoeuvre reliably then the CVC should be removed during exhalation.
Procedure
Follow aseptic non touch technique throughout the procedure. Ensure an airtight occlusive dressing is ready to be applied before commencing removal of the CVC.
Clamp CVC and discontinue any infusion if in progress.
Remove CVC site dressing and discard.
Clean exit site with recommended cleaning solution and allow to dry.
Remove any sutures that are present, (cut away from the patients skin).
Remove CVC briskly from the vein in a smooth consistent motion (NOT slowly or tentatively).
Apply the dressing to the exit site as the CVC is removed, aiming for immediate occlusion of exit site.
Pressure should be maintained on this dressing for 5 minutes to reduce the risk of air embolus and ensure haemostasis. (Do not remove the dressing to check if the blood has stopped as this increases the risk of air embolus).
Assess the patient regularly post CVC removal, ensuring the dressing is assessed to ensure it remains occlusive. If the dressing appears blood soaked consider changing the dressing, and/or a medical review dependent on the patient's current coagulation status.
Peripherally Inserted Central Catheter (PICC) and Tunnelled Uncuffed CVC removal
The nurse should:
Perform hand hygiene and don non-sterile gloves
Remove dressing and securement device
Clean the site thoroughly with chlorhexidine gluconate 2% /ethanol 70% and allow to dry prior to removal of catheter
Apply simple traction to withdraw the catheter
Cover the site with gauze and maintain pressure until haemostasis is achieved
Apply transparent dressing and assess site every 24 hours until the site is epithelialized
On removal the nurse should visually check the integrity of the line to ensure that the tip is present, the complete line has been removed and no breakage has occurred
The removed line should be measured and its length documented and checked against the length documented on insertion
PICC and tunnelled uncuffed CVC may be secured using a Securacath device. These devices should only be removed by designated staff trained in their removal. For more information about removing these lines, view SecurAcath removal instructions.
Discharge of a child with an intermediate or long term CVC in situ
Ensure the careful preparation of family/whānau/caregivers and children where the child is being discharged with an intermediate or long term CVC in situ, as per discharge checklist and parent teaching information. Provide a CVC Safety Pack prior to discharge to whānau/caregivers.
If child is being sent home on IV therapy which the parents are to administer please ensure the following documents are completed:
Discharge summary to document the type of line, care, maintenance plan and plan for removal required.
CR8877: Home IV Therapy Agreement and Training Record
DD2909 Home IV therapy assessment
Associated clinical forms
TRIAL-SSH-CR4030: Central Line Associated Bacteraemia (CLAB) Insertion Bundle Checklist
TRIAL-SSH-CR4032: Central Line Associated Bacteraemia (CLAB) Maintenance Bundle Checklist Continuation Sheet
